Star Series

Stor Fly Screen SystemsPleated Fly Screen SystemsSliding Fly Screen SystemsInternal Mounted Fly Screen SystemsFlat Fly Screen SystemsFly Screen AccessoriesFly screen tulleWeatherstripProfile and Assembly Sets

Corner Tensioner

Set Content

No	PRODUCT CODE	NAME OF THE PRODUCT
1	302	Star Case
2	301	Star Wing
3	-	Corner Wedge
4	-	Bearing Set
5	-	Pleat Ribbon
6	-	Hole Clip
7	-	Pleated Tulle

The ropes that provide the wing mobility are fixed with the rope tensioner in the frame, as well as the rope tensioner screw in the corner wedge, where the rope is fixed.

Model is also available. Since the width of the case is narrower than the Gold series, it provides ease of assembly in some areas.

Star Series Profiles

Code	Profile	Quantity In Package	Quantity In Box	Weight
302	Star Case Profile	10	-	0,272 kg/m
301	Star Wing Profile	10	-	0,303 kg/m

COLOR OPTIONS

9016White

Anodized Painted

Bronze Painted

8003Golden Oak

8016Mahogany

7016Anthracite Gray

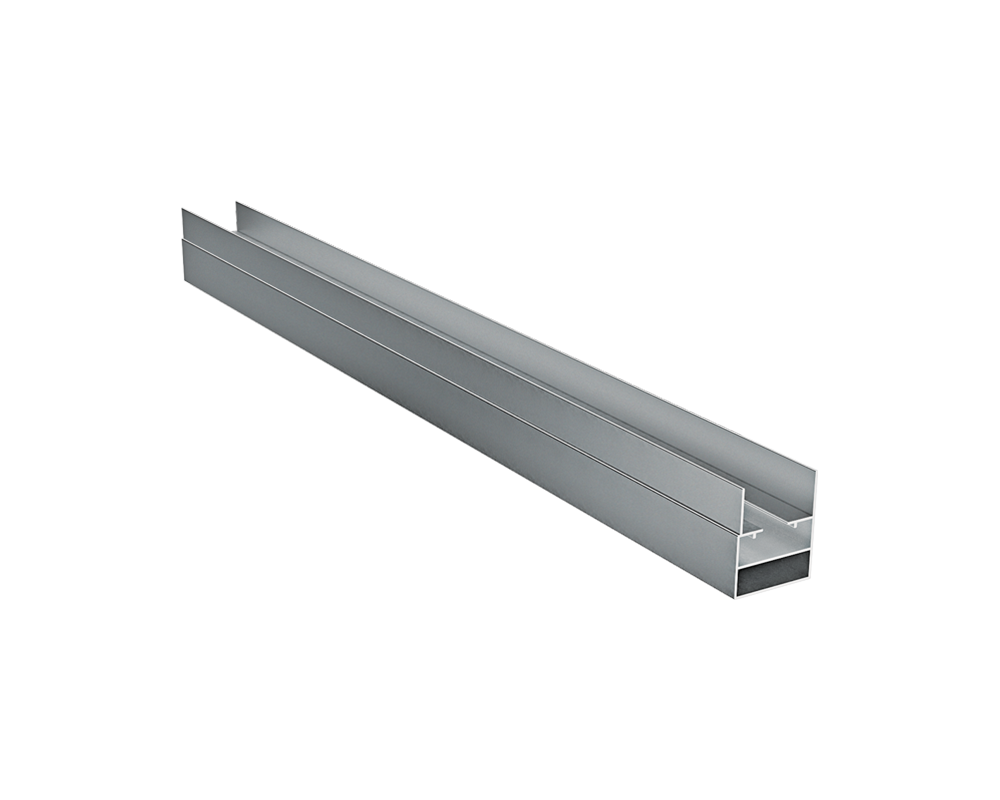

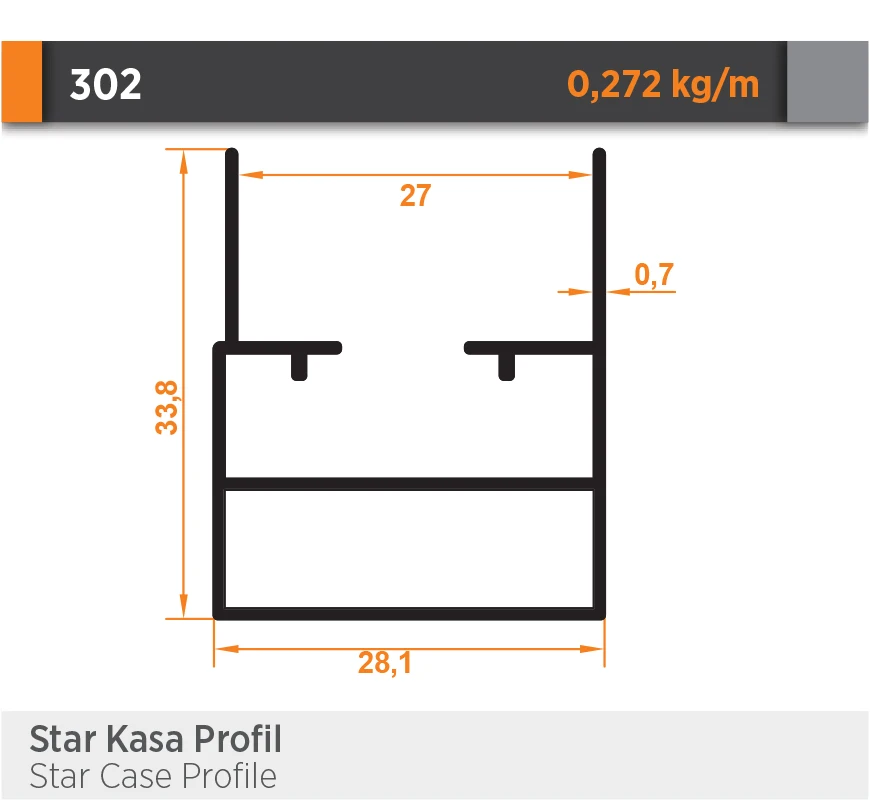

Star Case Profile

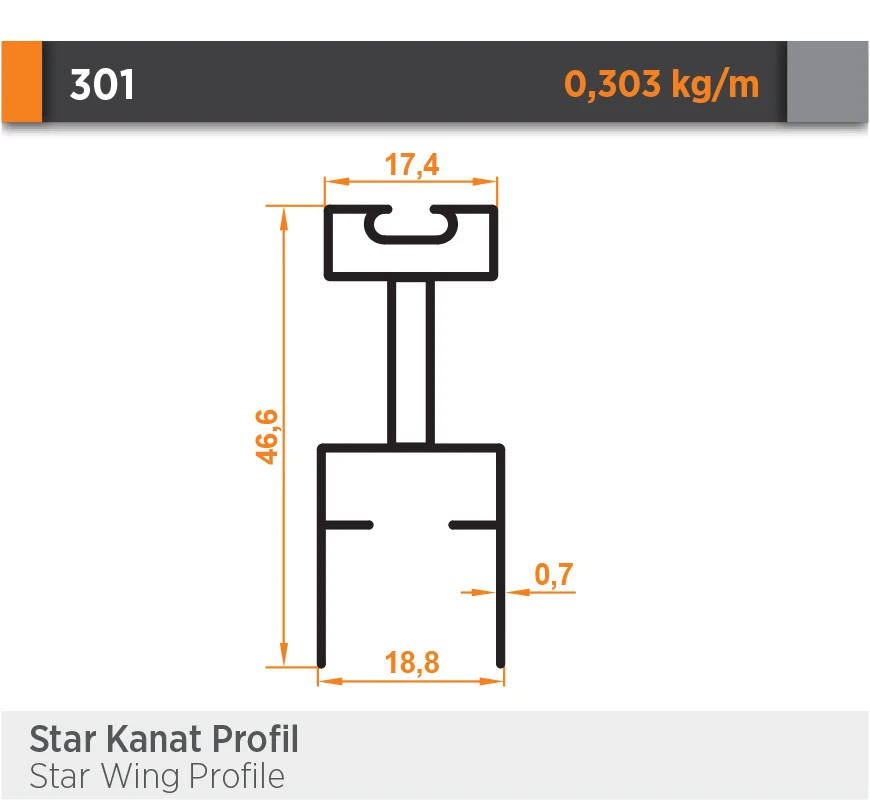

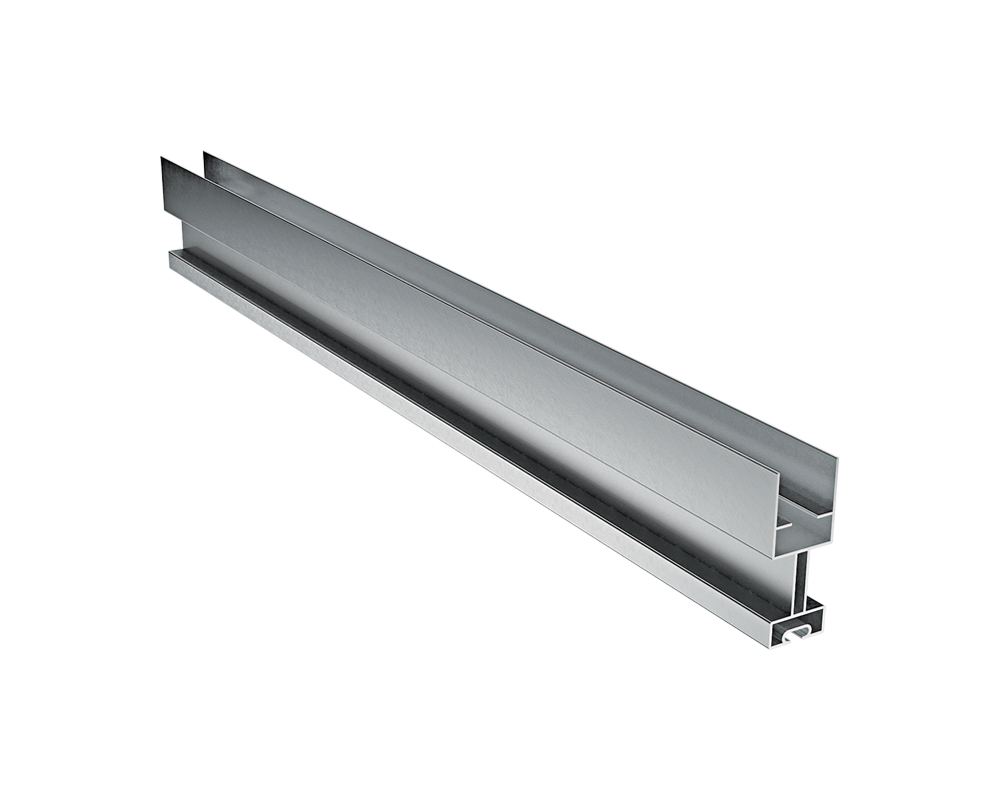

Star Wing Profile

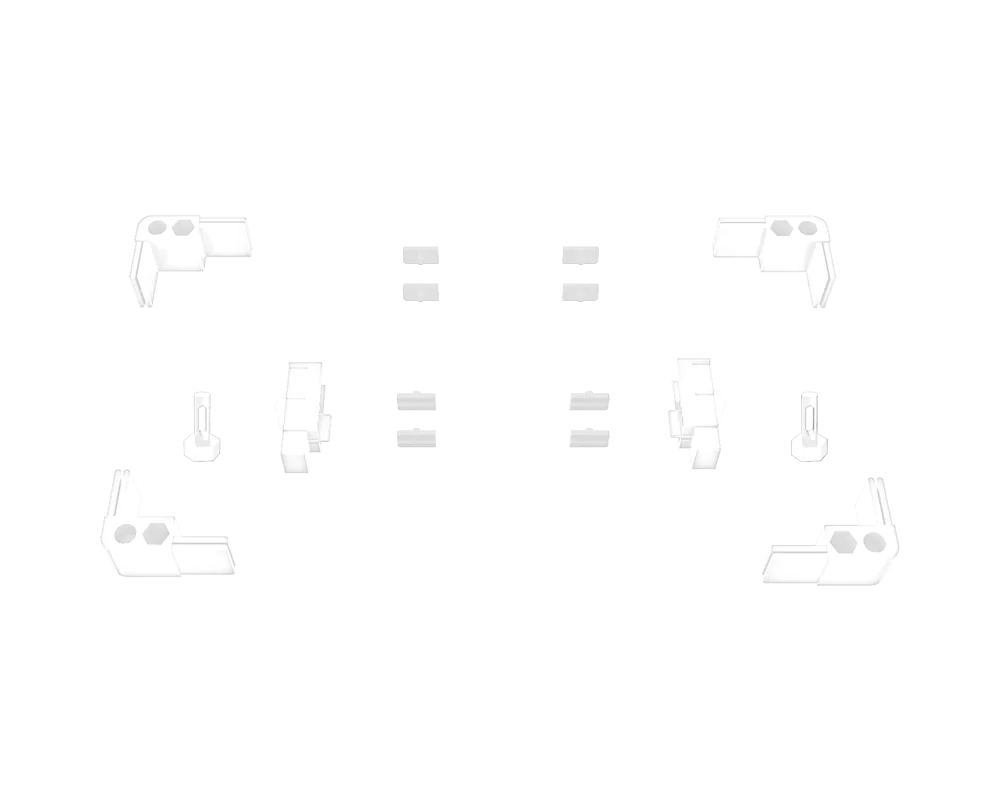

Star Serie Internal Tensioner Accessory Set

Code	Colour	Quantity In Package
AKS 05	White	100 Sets
Set Content
4 Pieces Corner Wedge
2 Pieces Wheel Covers
8 Clips
2 Pieces Corner Tensioner Screws

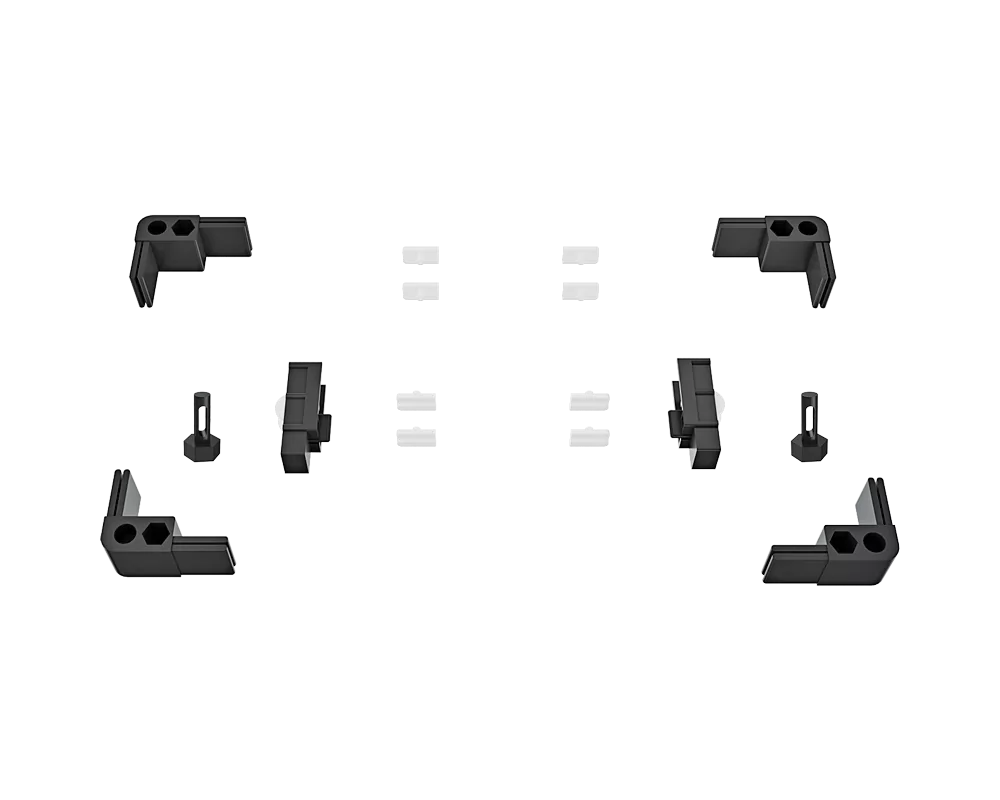

Code	Colour	Quantity In Package
AKS 06	Black	100 Sets
Set Content
4 Pieces Corner Wedge
2 Pieces Wheel Covers
8 Clips
2 Pieces Corner Tensioner Screws
